HOW TO SETUP 5 1 CHANNEL SPEAKER SYSTEM

Updated: Nov 10, 2021

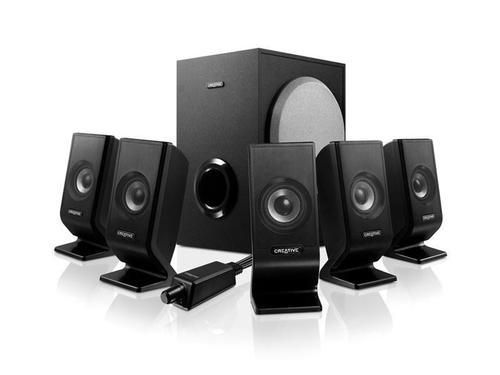

While watching a movie sound plays an important role in entertainment a good sound effect make a great movie greater that's why surrounding sound is being more popular day by day to enjoy surrounding sound you need at least five-point one or six-channel audio system which is very common today there are other variants too like 7.1 or 7.1.2 etc in today's post we will be discussing how to set up a 5.1 channel speaker system with or PC without any Sound Card A 5.1 system consists of five satellite speakers.


They are Center Front right, Front left, Rear right, Rear left and one big Subwoofer things you are going to need a speaker system with the DVD input this is a Backside of Philips SPA 8000B 5.1 home theatre 3.5 mm to RCA Cable At one end of this cable there are two separate left and right channel check and at the other end a 3.5 mm jack you need three of them and obviously a PC to connect with insert 3.5 mm jacks into all the three audio ports backside of the PC like.



This now you have six RCA jacks to be inserted into home theatre's DVD input ports Now connect one cable to front left and front right another to centre and Subwoofer and the remaining one to rear left And rear right now set your home theatre input to DVD mode now it's time for software tweaks go to hardware and sound in control panel then open your audio driver in speaker configuration tab choose 5.1 speakers from the drop-down menu than at the back panel section according to your home theatre input choose one centers subwoofer speaker out another front speaker out And the remaining rear speaker out then click OK alternatively you can go to control panel hardware and sound, Then sound In playback tab select speakers --configure select 5.1 surrounds from the list you can check all the speakers by clicking on the test button or you can check individual speakers by clicking on the individual speaker icon.




Check Here Detailed Guide best 5.1 multimedia speakers in India.


If everything is fine click Next tick Center, Subwoofer and rear pair click Next click all Full range speakers next -- finish -- ok now it's time to set up your media player open your media player go to settings or preferences in audio tab find speakers option Make sure It's set to "Same as input" then apply I have shown you with Pot player I hope you will find your media player setting front left centre front right rear left rear right please note in youtube you can only listen to two-channel Audio Download the media file from the link in the description below.
